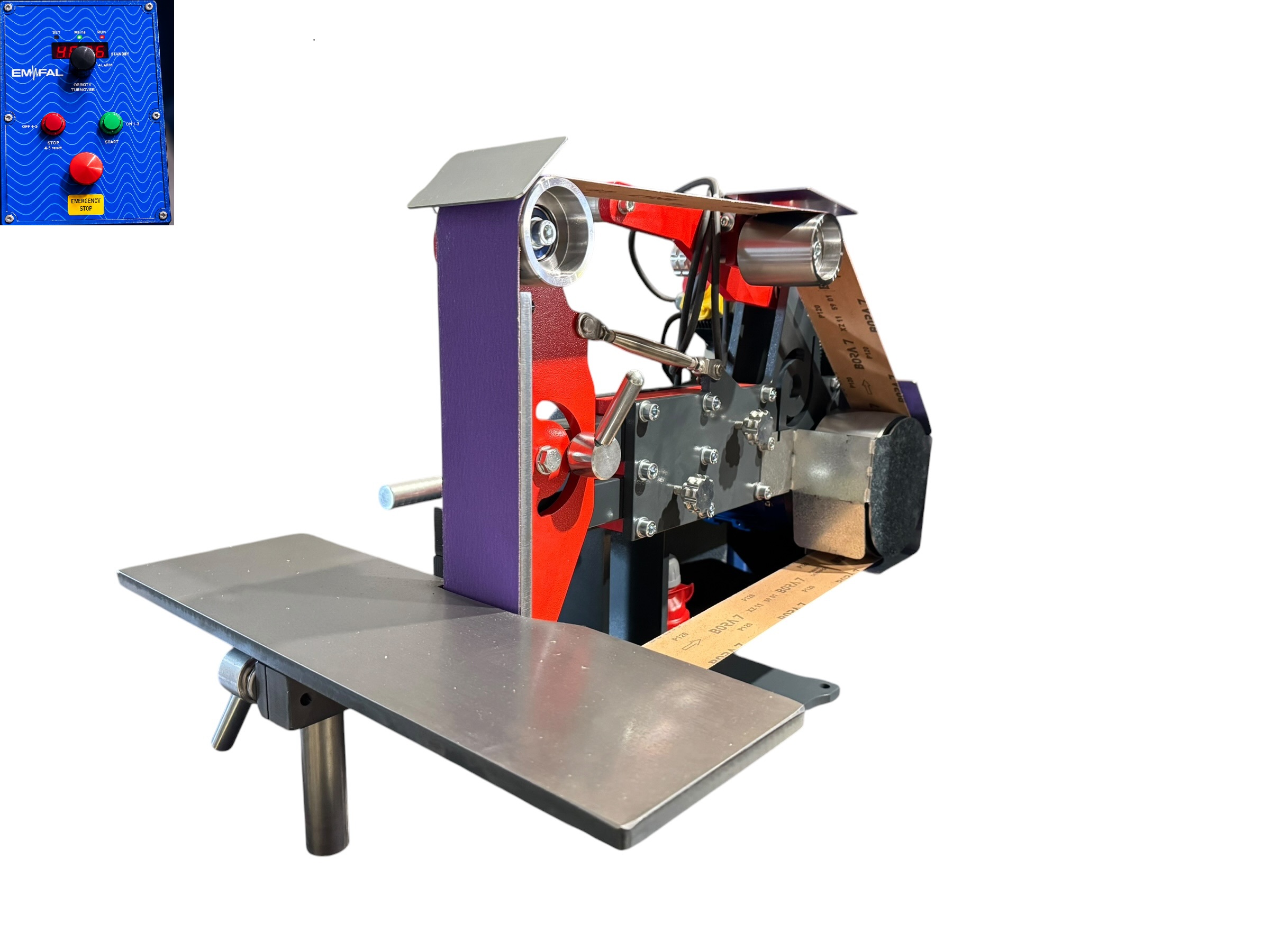

Belt Grinder 75x2000 with Speed regulator
Description
75 × 2000 mm Belt Grinder with 2.2 kW Motor and Variable Speed Control
A professional belt grinder designed for demanding workshop applications, manufacturing environments, and knife-making operations. Featuring a 50 × 2000 mm abrasive belt, a powerful 2.2 kW three-phase motor, and variable speed control, this machine is ideal for grinding, deburring, profiling, beveling, and finishing steel, stainless steel, aluminum, wood, and plastic components.
The machine has been engineered with a strong focus on maximum rigidity, durability, and operator comfort. Thanks to the included VFD powered from a standard 230 V outlet, users can enjoy all the advantages of a professional three-phase drive system without requiring a 400 V three-phase electrical installation.
Exceptionally Rigid Construction
The machine frame is manufactured from 12 mm thick structural steel, providing outstanding rigidity and resistance to deformation even under demanding working conditions.
To further enhance structural stability, the grinder arms are reinforced with solid 40 × 40 mm steel bars. This design significantly reduces vibration and improves grinding precision.
With a total weight of 100 kg, the machine offers excellent stability and allows the operator to fully utilize the power of the drive system.
Steel Rollers – Maximum Durability
All rollers used in the machine are manufactured from steel. They provide excellent wear resistance, stable belt tracking, and long service life even under heavy workloads.
Precision-machined rollers ensure smooth operation, reduced vibration, and outstanding overall performance.
Safety and Ergonomic Design
The machine is equipped with guards protecting critical drive components and moving parts. These safety features provide excellent operator protection while maintaining convenient access to working areas.
A major advantage of the design is the increased access to the abrasive belt, making belt changes, belt tracking adjustments, and routine maintenance quick and straightforward.
The carefully designed grinding system enables comfortable operation on the contact wheel, the flat platen section, and the slack belt area, making the machine suitable for both aggressive stock removal and precision finishing work.
The grinder can be operated in both vertical and horizontal positions, allowing it to be easily adapted to a wide variety of grinding applications.
2.2 kW Three-Phase Motor with Emfal VFD
The machine comes equipped with a 2.2 kW Emfal Variable Frequency Drive (VFD) as standard, specifically matched to the installed three-phase motor.
The VFD is powered from a standard 230 V single-phase outlet and generates a three-phase output for the motor. As a result, the entire system operates from a conventional 230 V power supply, eliminating the need for a 400 V three-phase installation or industrial power outlet.
The included VFD provides:
- Smooth variable belt speed control
- High torque across a wide speed range
- Soft start and controlled stopping
- Improved control over the grinding process
- Precise adjustment of operating parameters to suit different materials
- Increased operator comfort and safety
By combining a three-phase motor with the Emfal VFD, the machine delivers the performance and flexibility of industrial-grade equipment while maintaining the convenience of standard 230 V power.
Key Features
- 75 × 2000 mm abrasive belt
- 2.2 kW three-phase motor
- 2.2 kW Emfal VFD included
- Powered from a standard 230 V outlet
- Variable belt speed control
- Belt speed up to 26 m/s
- Heavy-duty construction made from 12 mm steel
- Grinder arms reinforced with solid 40 × 40 mm steel bars
- All rollers manufactured from steel
- Large 500 × 150 mm work table
- Enhanced working access to the abrasive belt
- Suitable for contact wheel, platen, and slack belt grinding
- Quick belt changes and easy belt tracking adjustment
- Guards protecting critical drive and moving components
- Vertical and horizontal operating positions
- Durable powder-coated finish
- CE marked
CE Compliance
The machine carries the CE marking, confirming compliance with applicable European Union safety requirements and regulations. High-quality construction, appropriate safety guards, and proven components ensure safe, reliable, and long-lasting operation.
Technical Specifications
| Specification | Value |
|---|---|
| Belt size | 75 × 2000 mm |
| Motor power | 2.2 kW |
| Motor type | Three-phase |
| VFD | Emfal 2.2 kW |
| Power supply | 230 V single-phase |
| Variable speed control | Yes |
| Belt speed | Up to 26 m/s |
| Work table dimensions | 500 × 150 mm |
| Frame construction | 12 mm steel |
| Grinder arm reinforcement | Solid 40 × 40 mm steel bars |
| Rollers | Steel |
| Vertical / horizontal operation | Yes |
| Safety guards | Yes |
| Finish | Powder-coated |
| Certification | CE |
| Weight | 100 kg |
| Machine dimensions (L × W × H) | 900 × 550 × 550 mm |
Machine Dimensions
- Length: 900 mm (90 cm)
- Width: 550 mm (55 cm)
- Height: 550 mm (55 cm)
Why Choose This Model?
This is a complete solution for users seeking maximum performance and convenience. The combination of a powerful 2.2 kW three-phase motor, a 2.2 kW Emfal VFD, a heavy-duty 12 mm steel frame, solid 40 × 40 mm steel reinforcement bars, and all-steel rollers delivers exceptional rigidity, durability, and precision.
Because the entire system operates from a standard 230 V outlet, users can enjoy the capabilities of professional industrial equipment without requiring a 400 V three-phase electrical installation.
