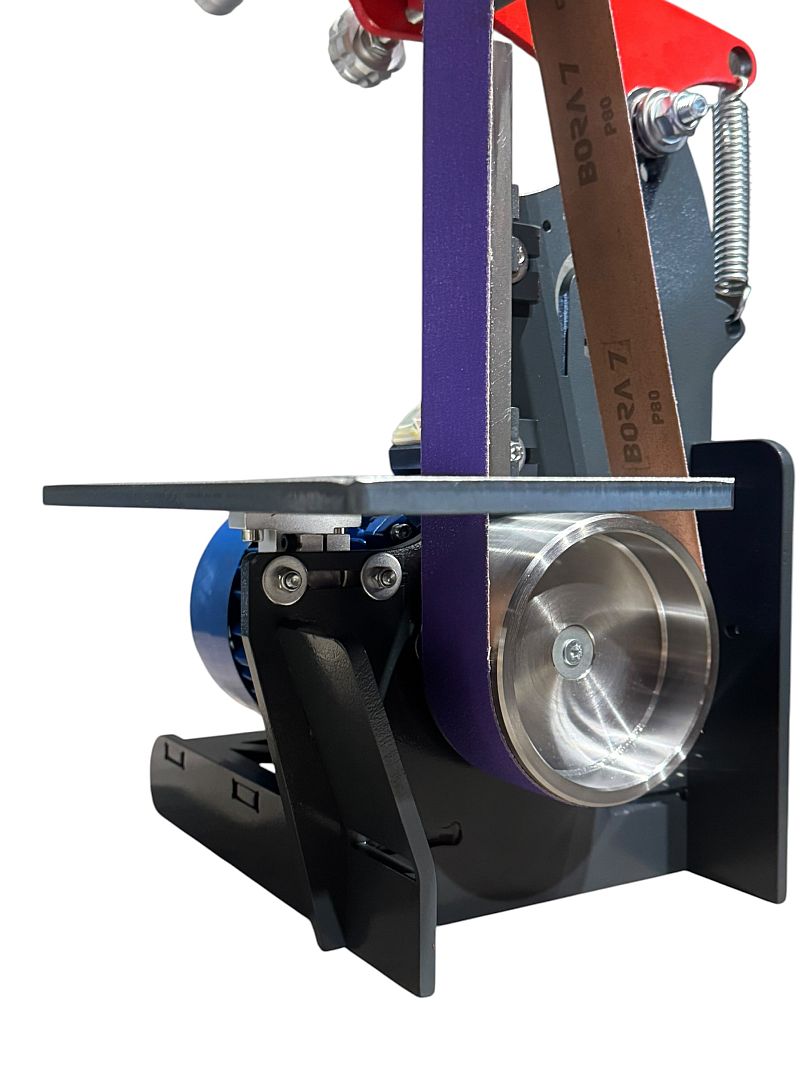

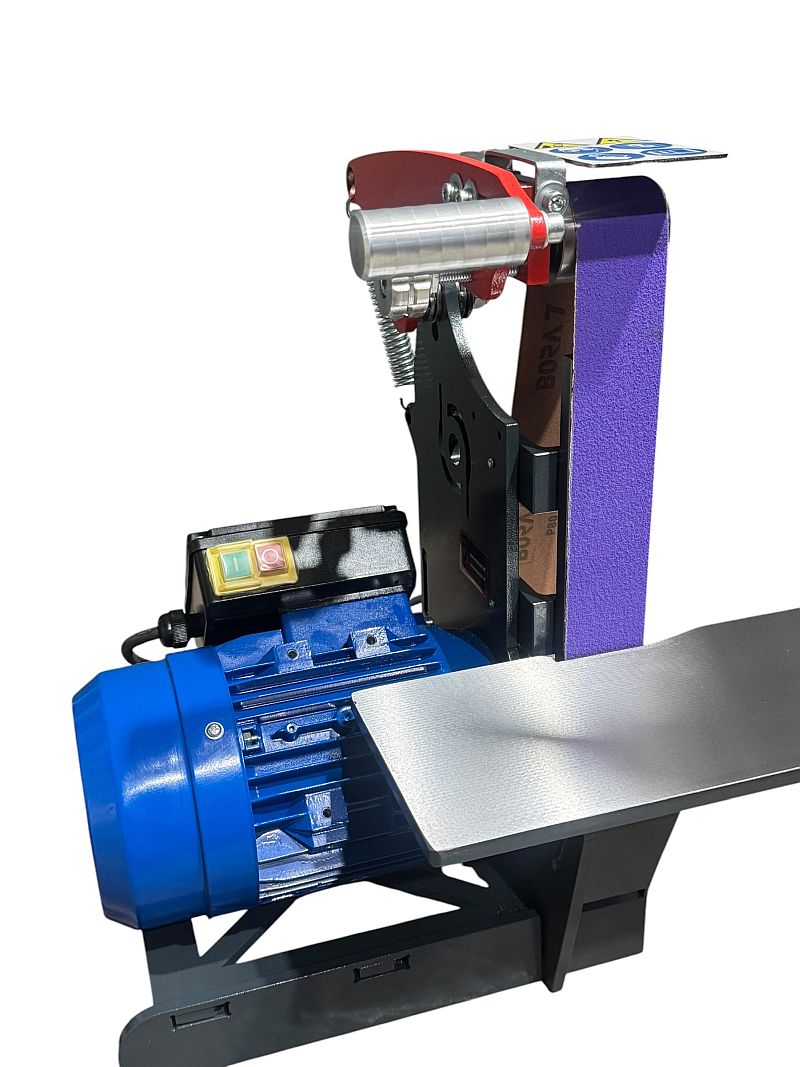

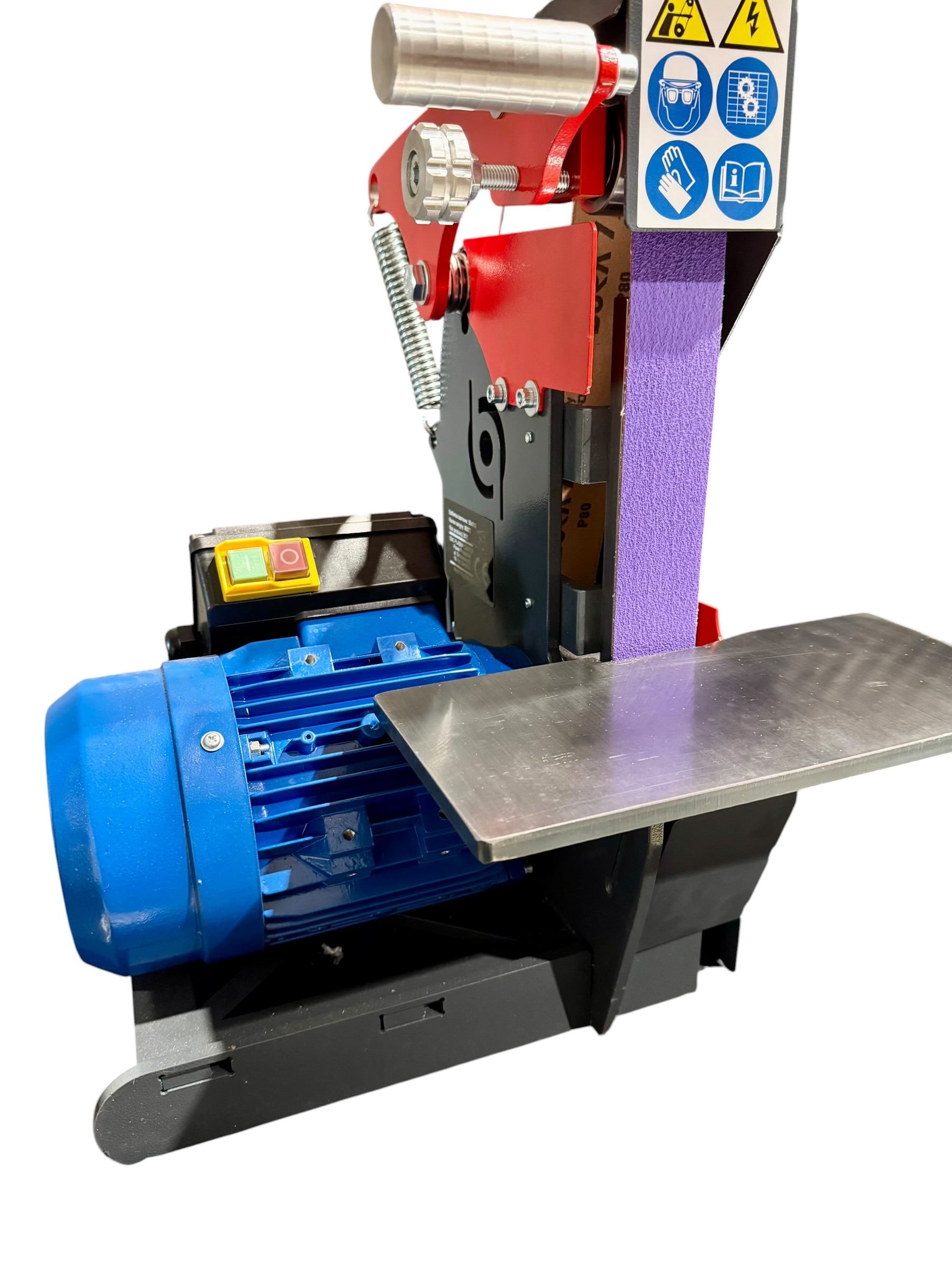

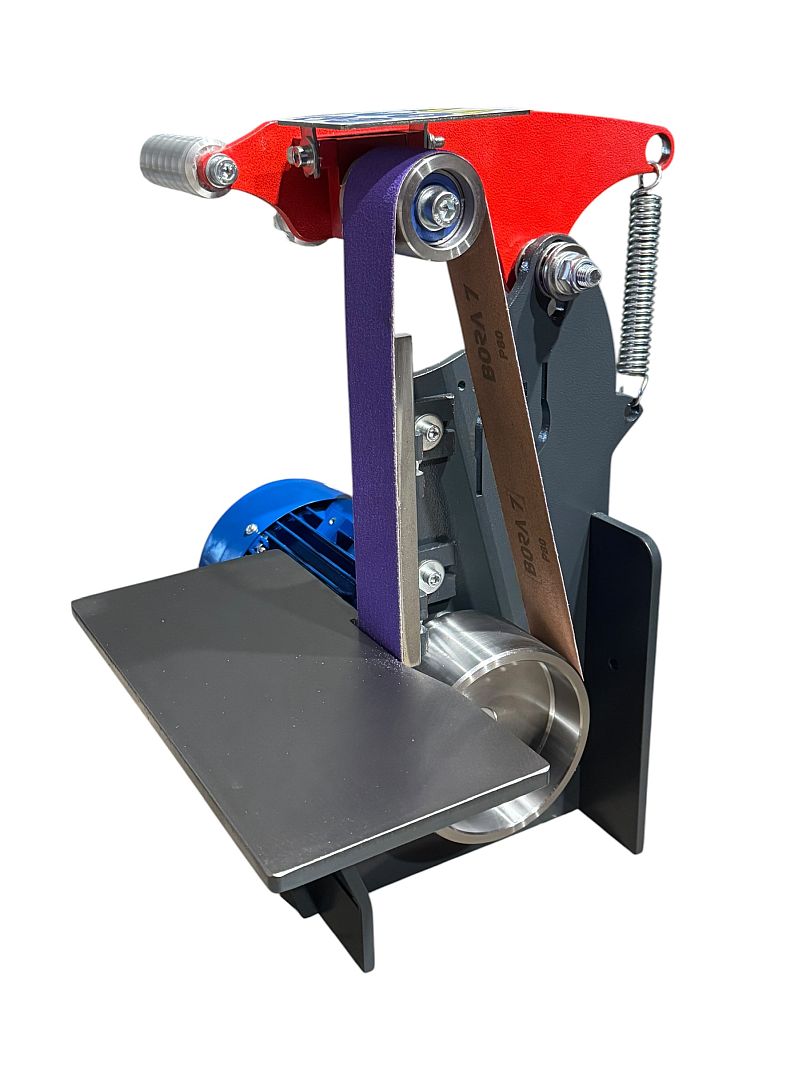

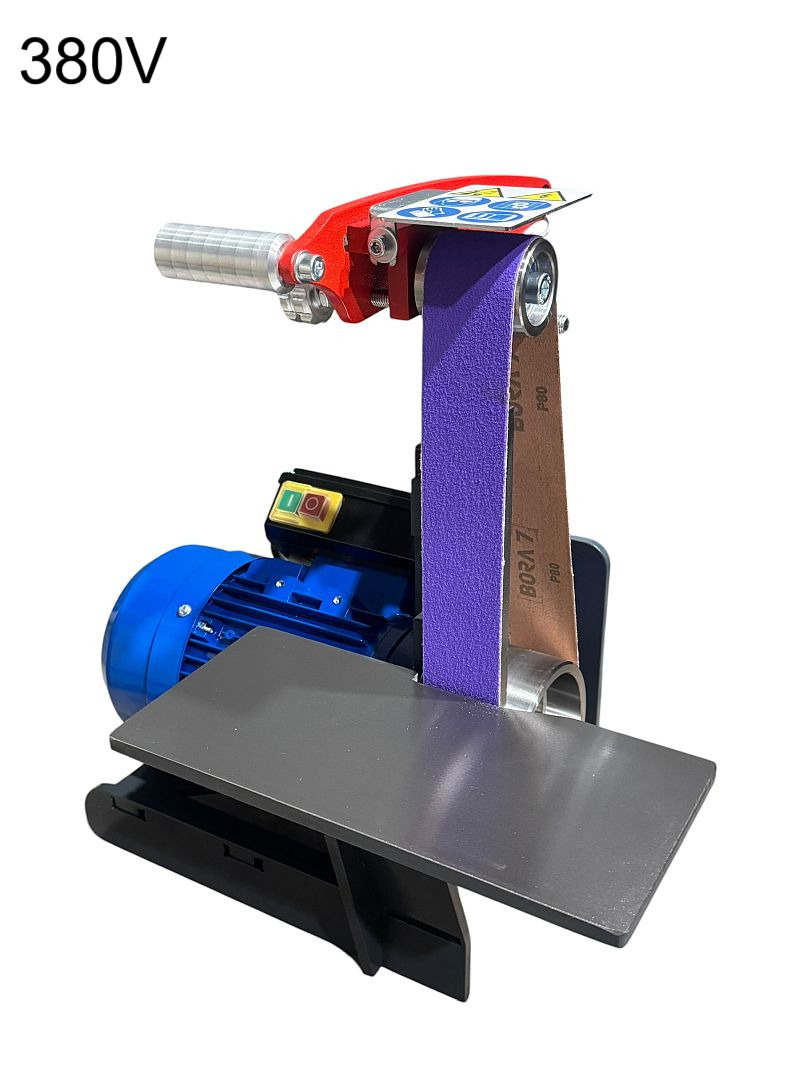

Belt Grinder 50 × 900 mm with 1.1 kW Three-Phase 380 V Motor

Compact belt grinder 50 × 900 mm designed for hobby users, home workshops, and small workshops involved in metalworking, woodworking, and knife making. Thanks to its solid steel construction, efficient three-phase motor, and precision-machined rollers, the machine provides stable and comfortable operation for everyday workshop applications.

The grinder is ideal for grinding, deburring, beveling, profiling, satin finishing, and finishing various components made of steel, stainless steel, aluminum, wood, and plastics.

Solid Workshop Construction

The machine frame is made from 8 mm thick steel, while the work table is manufactured from 10 mm steel. All components are laser-cut, ensuring high manufacturing precision and accurate fitment of all parts.

The compact construction and machine weight of 32 kg provide good stability during operation and help reduce vibrations while grinding.

Precision Roller System

The grinder is equipped with steel rollers made from C45 steel and machined on CNC lathes. This solution guarantees high durability, wear resistance, and smooth abrasive belt operation.

The crowned tracking roller with a diameter of fi 50 mm ensures proper belt tracking and centering, while the fi 130 mm drive wheel provides good working dynamics and efficient material removal.

Adjustable Work Table

The grinder features an adjustable work table that allows the user to set the desired angle relative to the abrasive belt. This solution improves comfort and precision when beveling, edge grinding, and machining smaller components.

Safety and Ease of Use

The machine is equipped with basic protective guards covering the most important drive components and moving parts. These guards improve operational safety while still maintaining convenient access to the abrasive belt and working areas.

The construction allows comfortable work on both the flat platen section and around the working rollers, enabling the user to fully utilize the machine’s capabilities during various workshop tasks.

Three-Phase 1.1 kW 380 V Motor

The machine is equipped with a 1.1 kW three-phase motor powered by 380–400 V. The installed motor provides smooth operation, good running characteristics, and high durability.

The motor features copper windings, offering better heat resistance, longer service life, and higher reliability compared to aluminum windings.

An additional advantage is compatibility with VFDs (Variable Frequency Drives), allowing smooth belt speed adjustment and easy adaptation of working parameters to different materials and applications.

The belt speed of 19 m/s ensures efficient grinding and comfortable operation for most workshop applications.

Applications

The grinder is ideal for:

• metal grinding,
• edge deburring,
• beveling,
• profiling,
• satin finishing,
• tool sharpening,
• knife making,
• detail finishing,
• aluminum machining,
• woodworking,
• plastic machining.

Key Features

• 50 × 900 mm abrasive belt
• 1.1 kW three-phase 380 V motor
• Copper motor windings
• Compatible with VFDs
• Belt speed: 19 m/s
• 8 mm steel construction
• 10 mm steel work table
• Rollers made from C45 steel
• CNC-machined rollers
• Crowned fi 50 mm tracking roller
• fi 130 mm drive wheel
• Adjustable work table
• Basic safety guards
• Stable and compact construction
• Ideal for workshop and garage use

Technical Specifications

Why Choose This Model?

The 50 × 900 mm model is an excellent solution for users looking for a compact and solid belt grinder for workshop or garage use. Thanks to its steel construction, precision-machined rollers, and efficient three-phase motor, the machine provides stable and comfortable operation across a wide range of applications.

Compact dimensions, VFD compatibility, and a durable motor with copper windings make this machine a practical solution for hobby users and anyone looking for greater flexibility and reliability in everyday workshop work.
