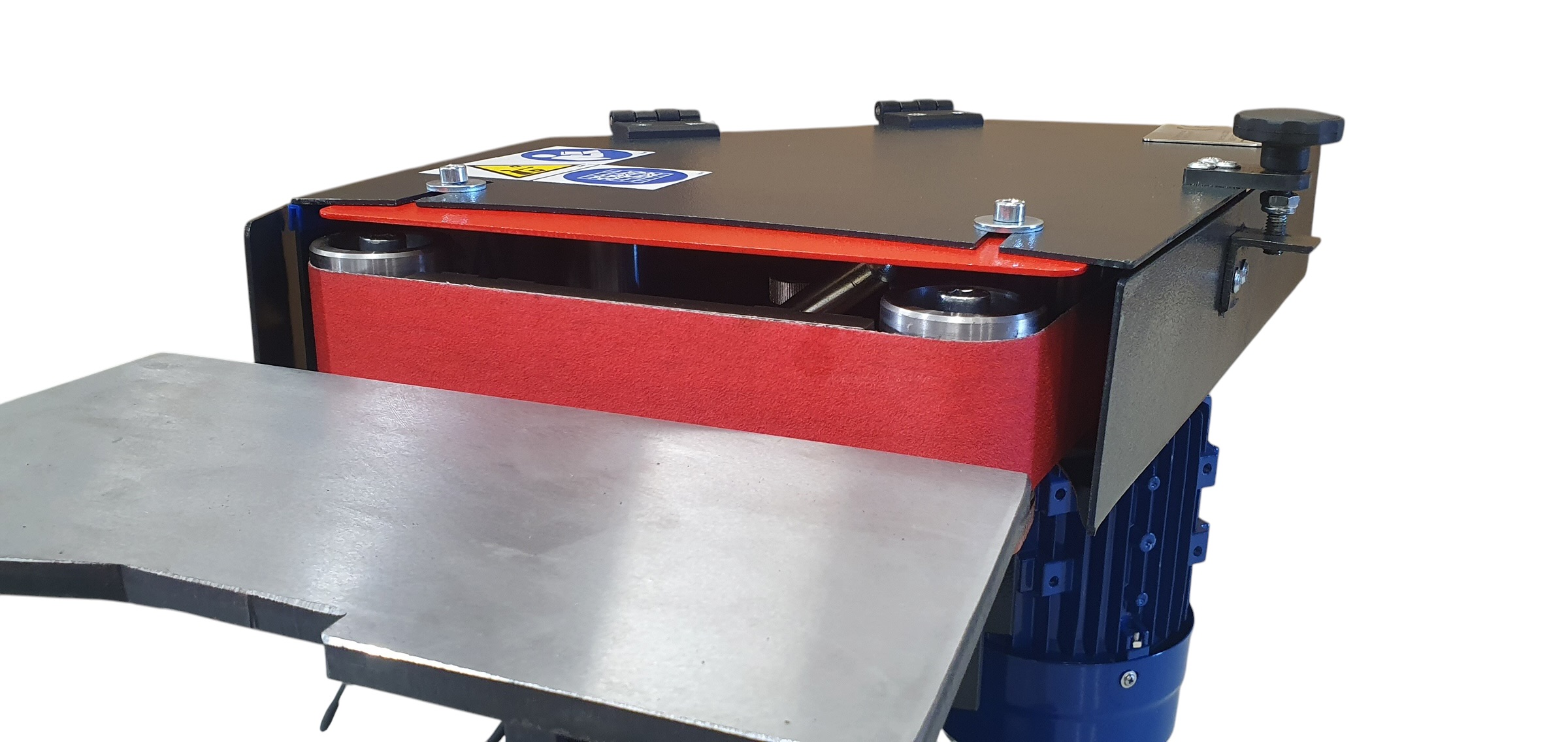

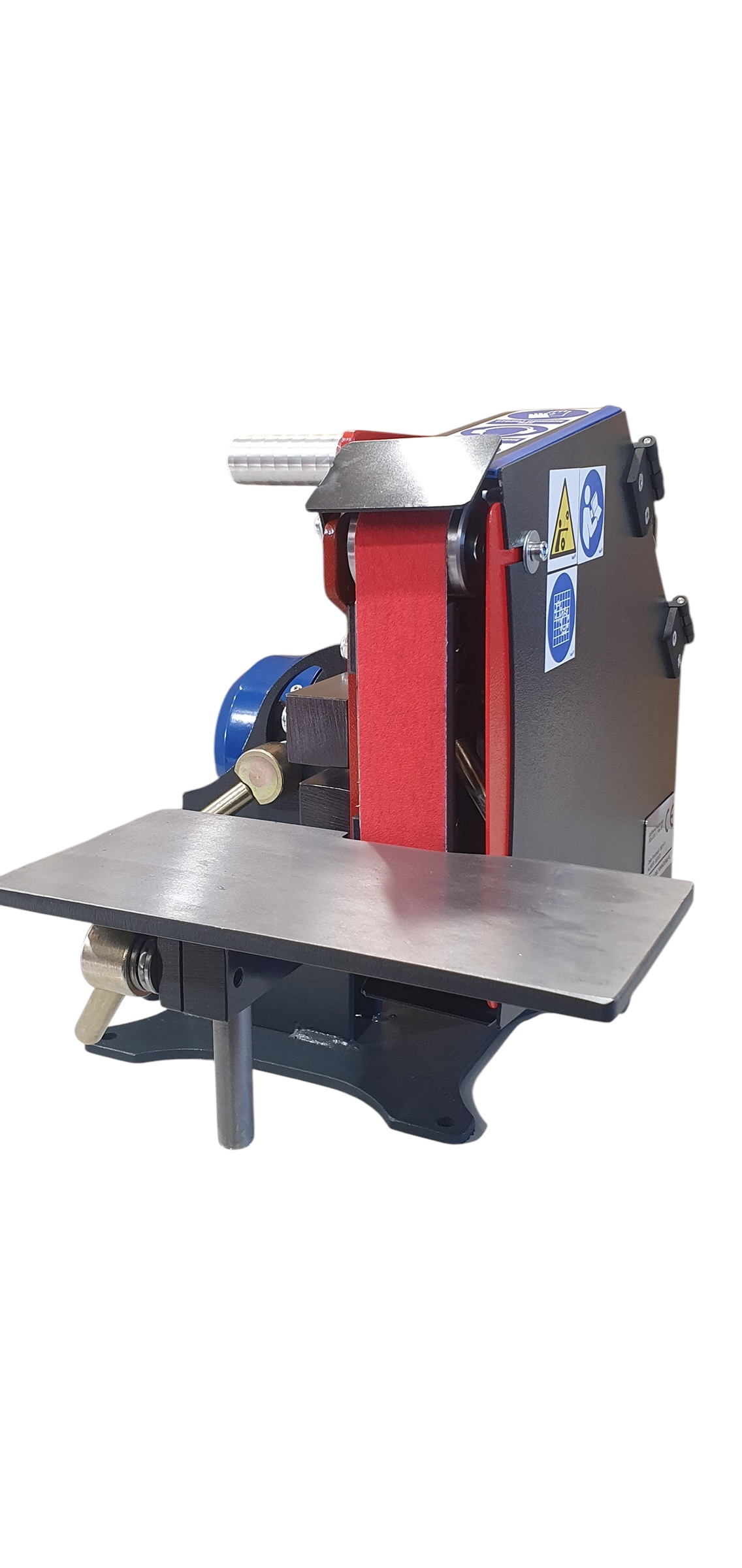

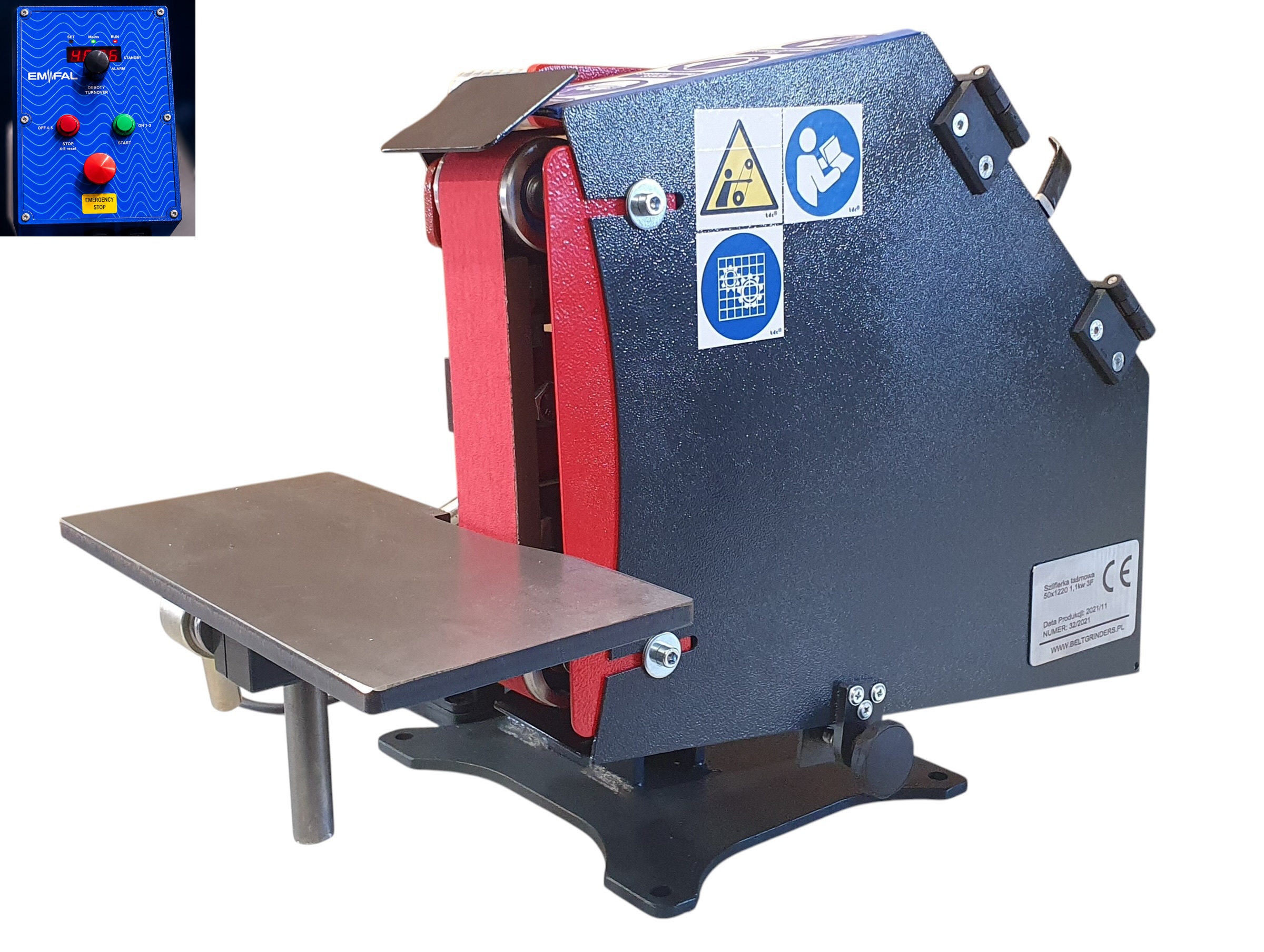

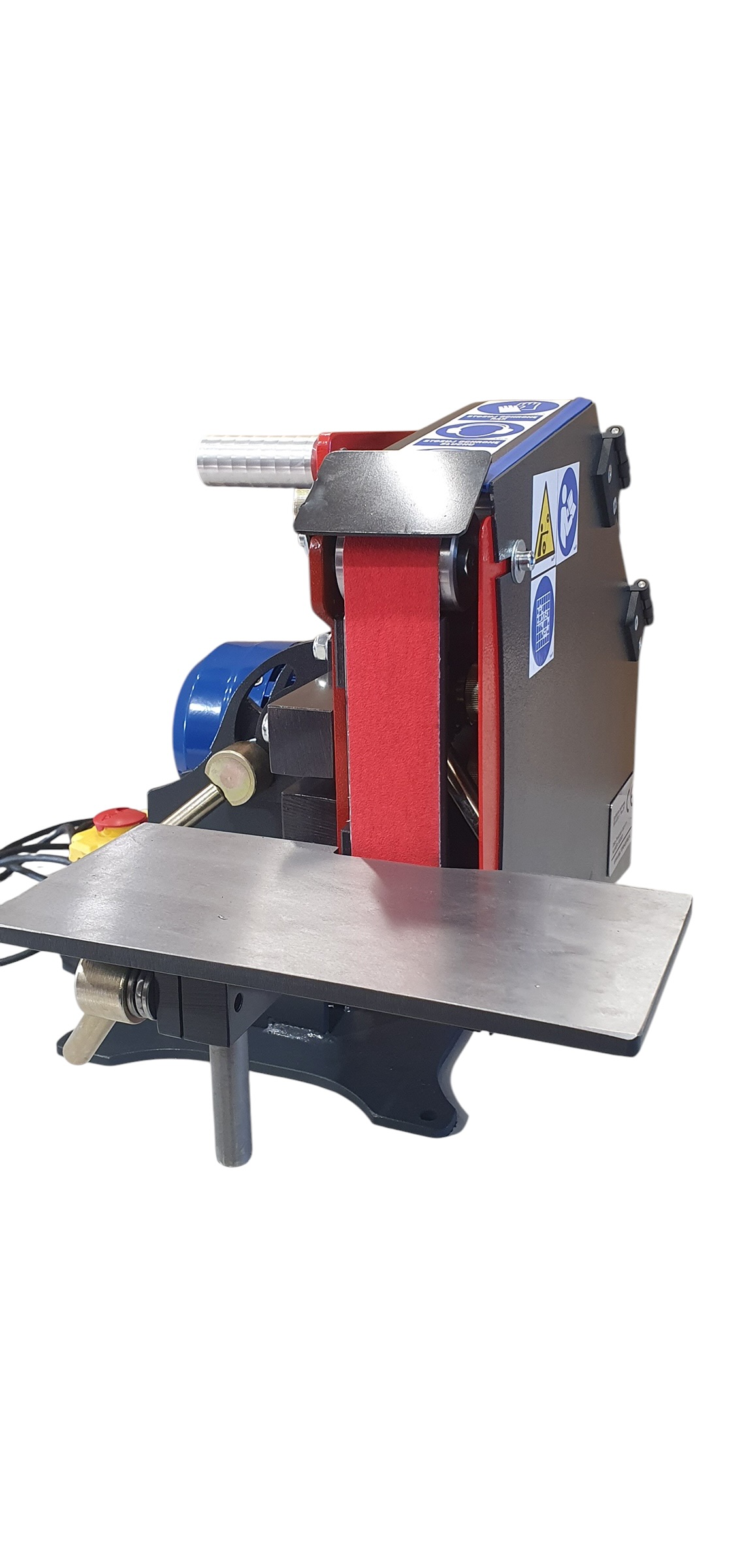

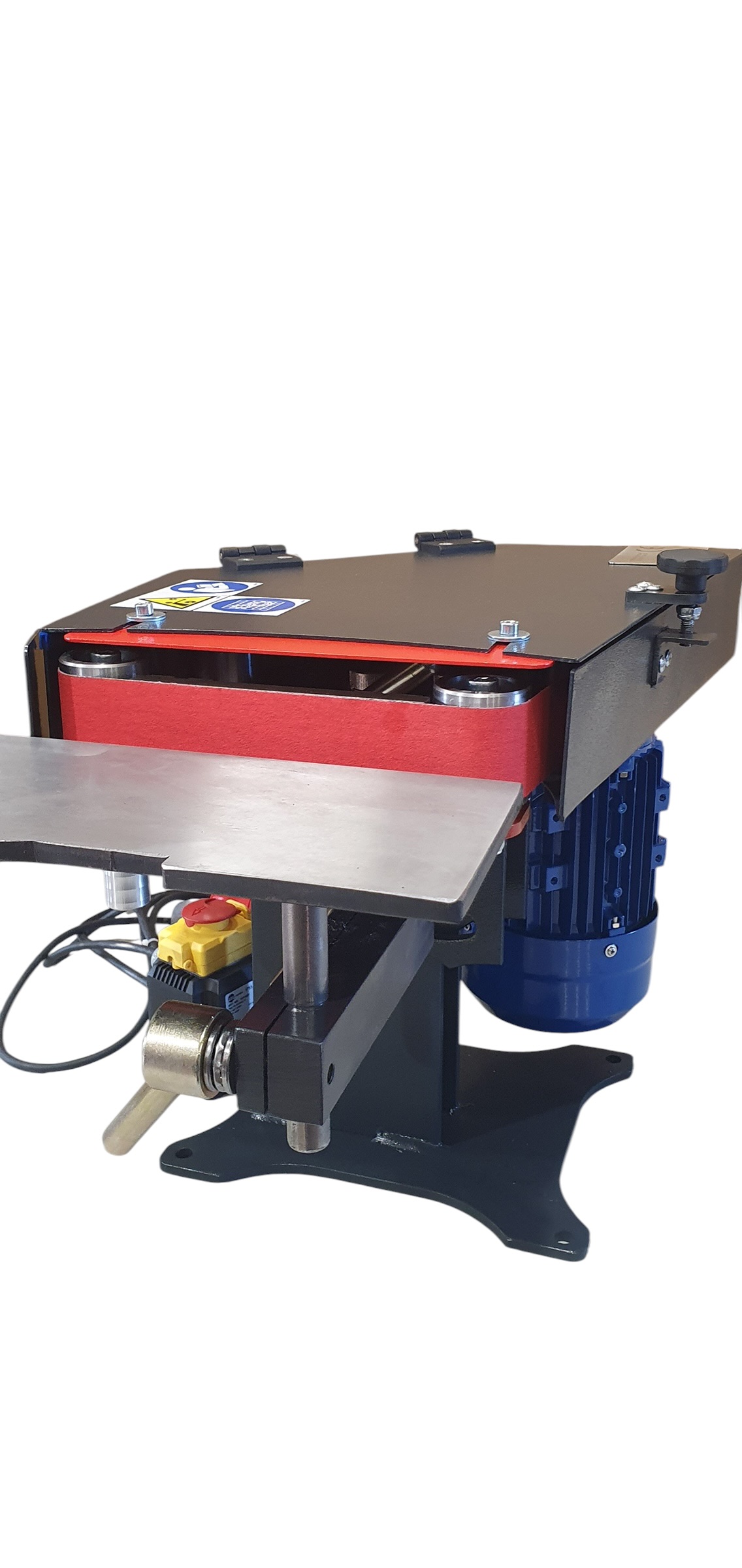

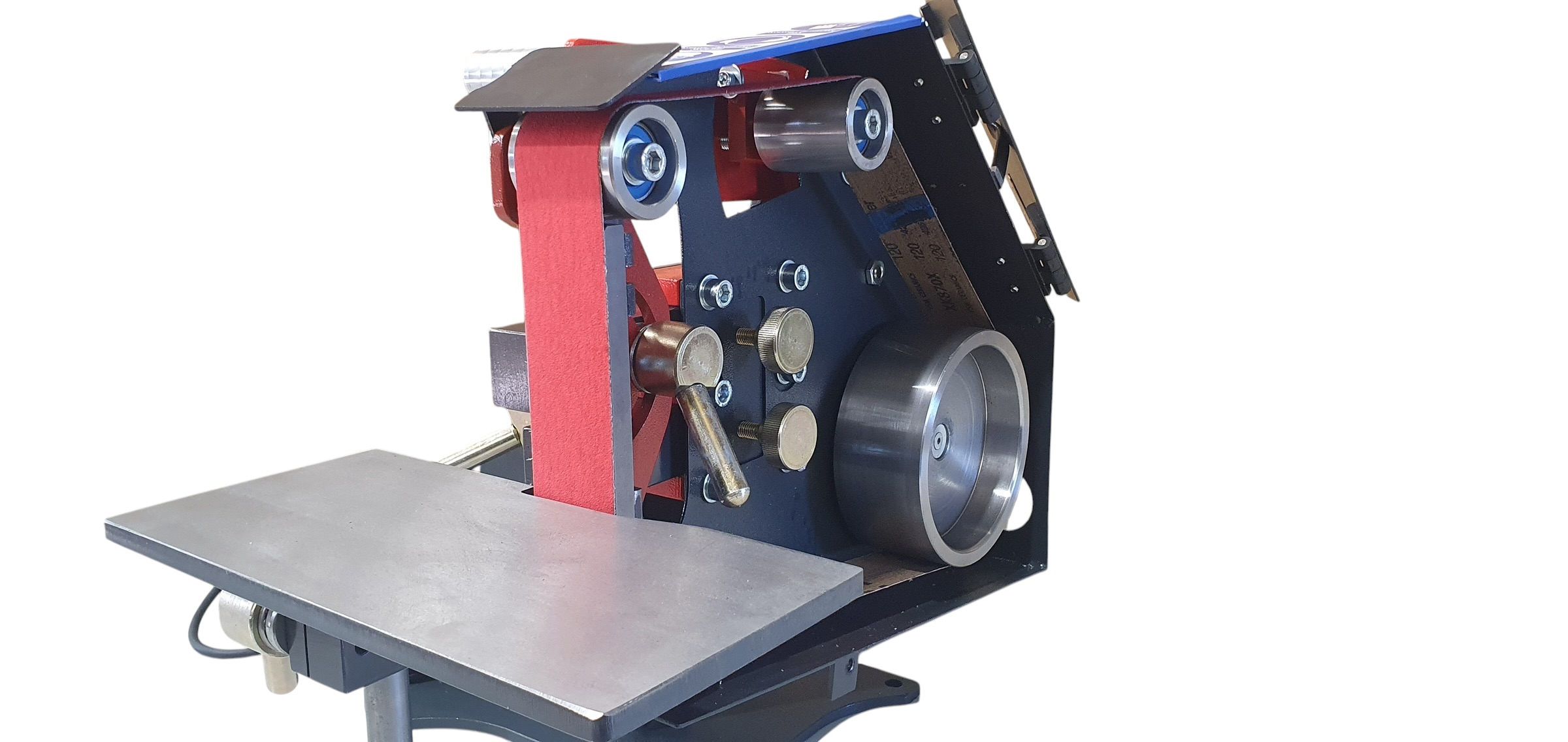

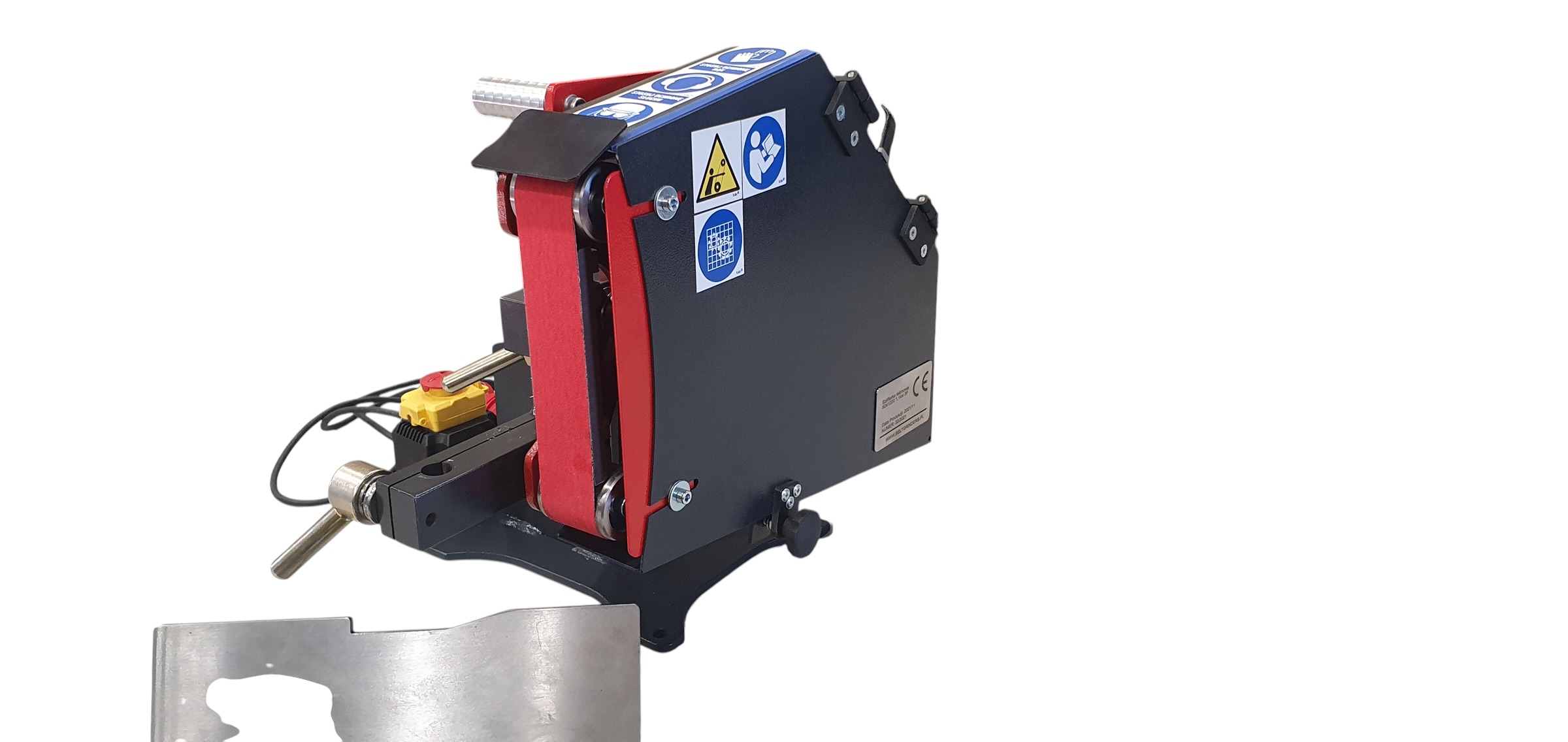

Belt Grinder 50x1220 CE Speed Regulator
Description
50 × 1220 mm Belt Grinder with Three-Phase Motor and 230 V VFD
Professional belt grinder designed for metalworking shops, fabrication workshops, and demanding hobby users. Its robust construction, high belt speed, and versatile operating positions make it ideal for grinding, deburring, beveling, shaping, and finishing steel, stainless steel, aluminum, wood, and plastic components.
The machine is equipped with a three-phase motor paired with a 1.5 kW Emfal variable frequency drive (VFD). This combination provides smooth speed control, high torque, and significantly greater flexibility compared to conventional single-phase drive systems.
Safety and Ease of Use
The grinder features a fully enclosed belt system, offering a significant safety advantage over open-frame designs. The enclosure helps prevent accidental contact with moving parts while protecting the operator from sparks, grinding debris, and dust generated during operation.
The machine can be operated in both vertical and horizontal positions, allowing it to be easily adapted to a wide range of grinding and finishing applications.
Key Features
- 50 × 1220 mm abrasive belt
- 1.1 kW three-phase motor
- 1.5 kW Emfal VFD (Variable Frequency Drive)
- Standard 230 V power supply
- Smooth variable speed control
- Vertical and horizontal operating positions
- Adjustable grinding support (platen) with angle adjustment
- Adjustable work table height
- Heavy-duty work table measuring 300 × 150 mm
- Belt speed up to approximately 23.5 m/s
- Fully enclosed belt system
- Durable powder-coated finish
- CE marked
Three-Phase Performance with Standard 230 V Power

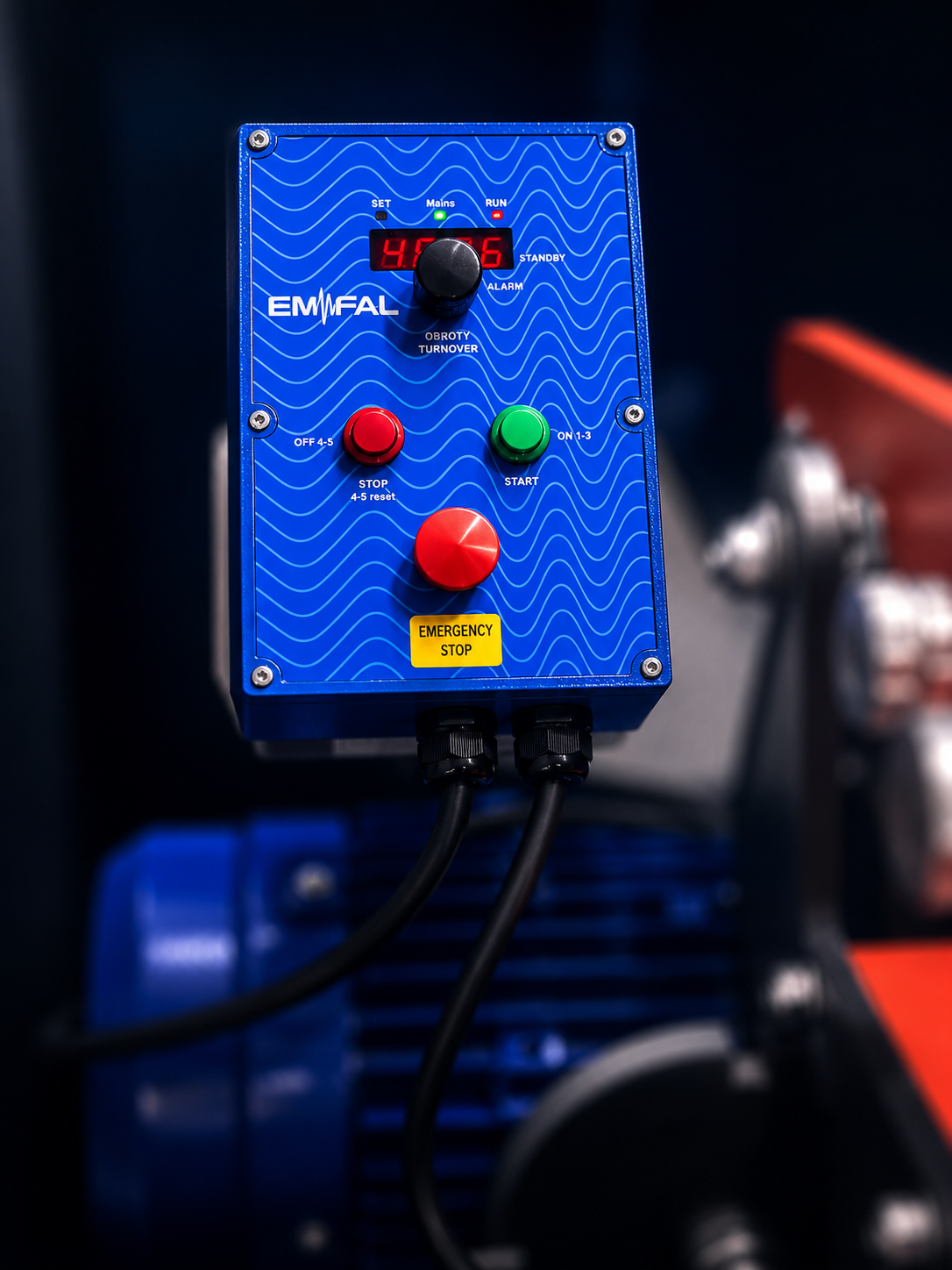

The machine is equipped with a three-phase motor driven by a 1.5 kW Emfal VFD. The VFD is powered from a standard 230 V single-phase outlet and generates a three-phase output for the motor.
This configuration allows users to benefit from all the advantages of a professional three-phase drive system, including:
- Smooth variable speed control
- High torque across a wide speed range
- Soft start and controlled stopping
- Improved running smoothness
- Increased drivetrain durability
One of the biggest advantages of this setup is that no 380–400 V three-phase electrical supply is required. The entire system operates from a standard 230 V outlet, making it possible to use a professional-grade belt grinder in virtually any workshop, garage, or home workspace.
CE Compliance
The machine carries the CE marking, confirming compliance with applicable European Union safety requirements and regulations. Its robust construction, fully enclosed belt system, and high-quality components ensure safe, reliable, and long-lasting operation.
Technical Specifications
| Specification | Value |
|---|---|
| Belt size | 50 × 1220 mm |
| Motor power | 1.1 kW |
| Motor type | Three-phase |
| VFD | Emfal 1.5 kW |
| Power supply | 230 V single-phase |
| Belt speed | Up to approx. 23.5 m/s |
| Work table dimensions | 300 × 150 mm |
| Machine dimensions (L × W × H) | 650 × 400 × 460 mm |
| Adjustable work table | Yes (up/down) |
| Adjustable platen angle | Yes |
| Vertical / horizontal operation | Yes |
| Belt enclosure | Full |
| Finish | Powder-coated |
| Certification | CE |
| Weight | 45 kg |
Machine Dimensions
- Length: 650 mm (25.6 in)
- Width: 400 mm (15.7 in)
- Height: 460 mm (18.1 in)
By combining a three-phase motor with a 1.5 kW Emfal VFD, this machine delivers the performance and flexibility of industrial-grade equipment while maintaining the convenience of a standard 230 V power supply. It is the ideal solution for users seeking variable speed control, high performance, and professional reliability without the need for a 380–400 V three-phase electrical installation.
