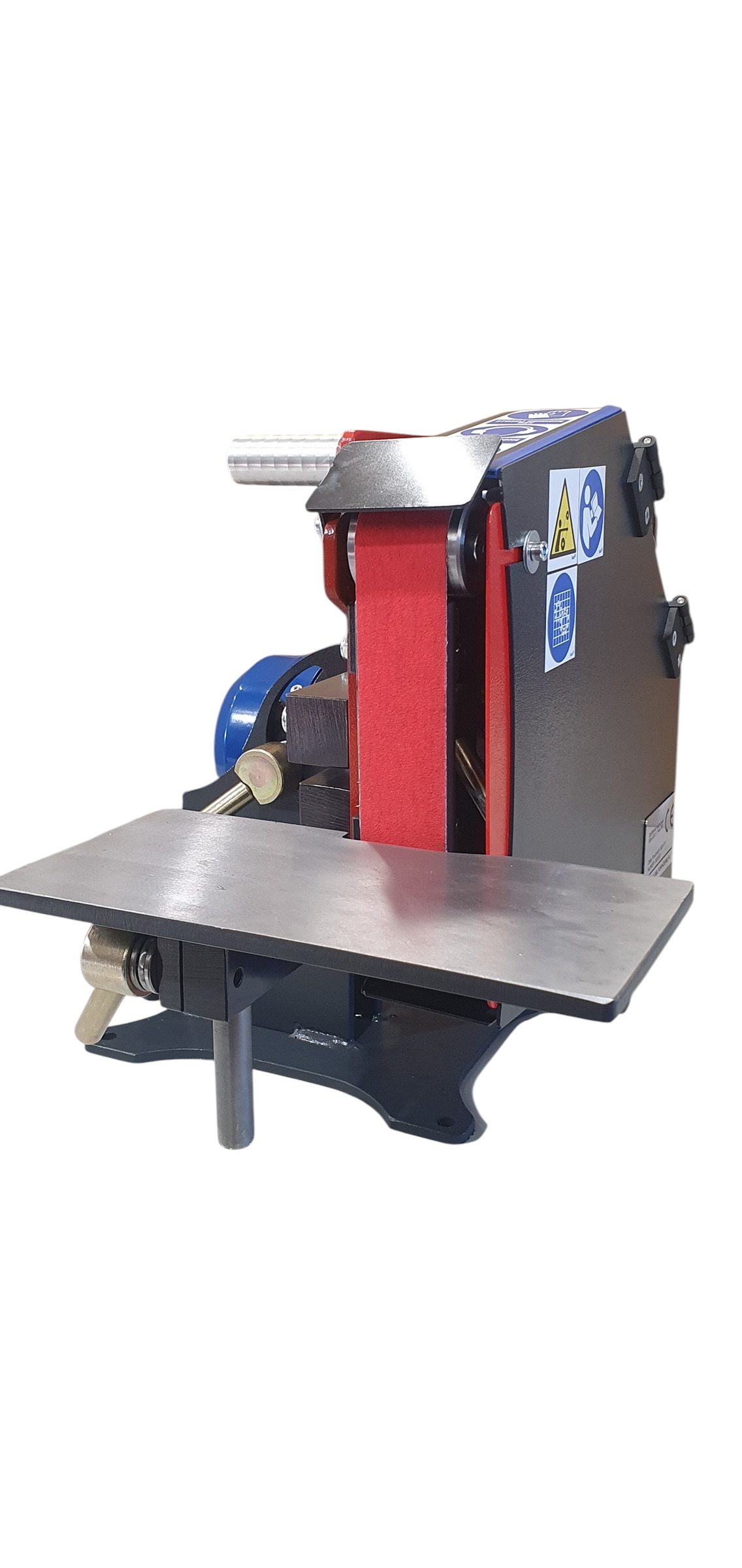

Belt Grinder 50x1220 1,1kw 3F CE
Description
Belt Grinder 50 × 1220 mm with Three-Phase Motor
A professional belt grinder designed for demanding users, metal fabrication shops, workshops, and industrial applications. Built with durability, precision, and safety in mind, this machine is ideal for grinding, deburring, beveling, shaping, and finishing a wide range of materials, including steel, stainless steel, aluminum, wood, and plastics.
Its compact footprint, rigid construction, and high belt speed make it a powerful yet space-efficient solution for both professional and hobby workshops.
Designed for Performance and Safety

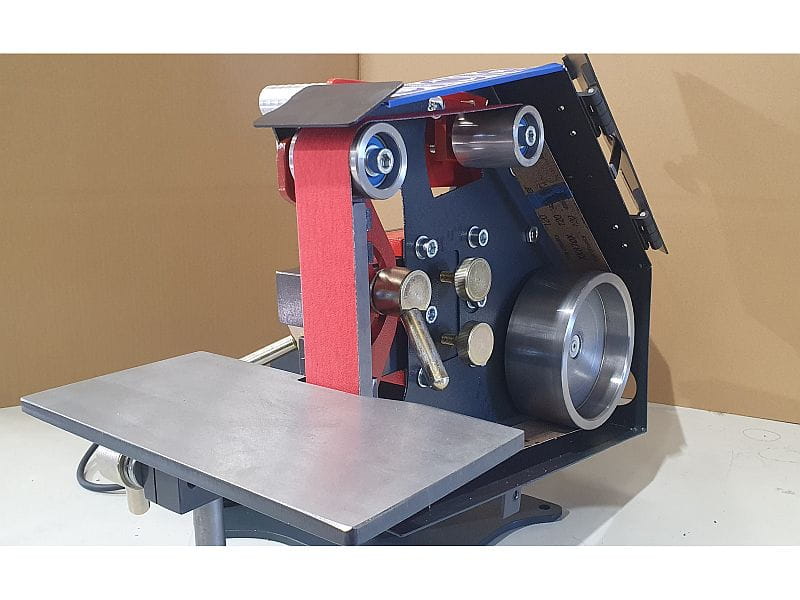

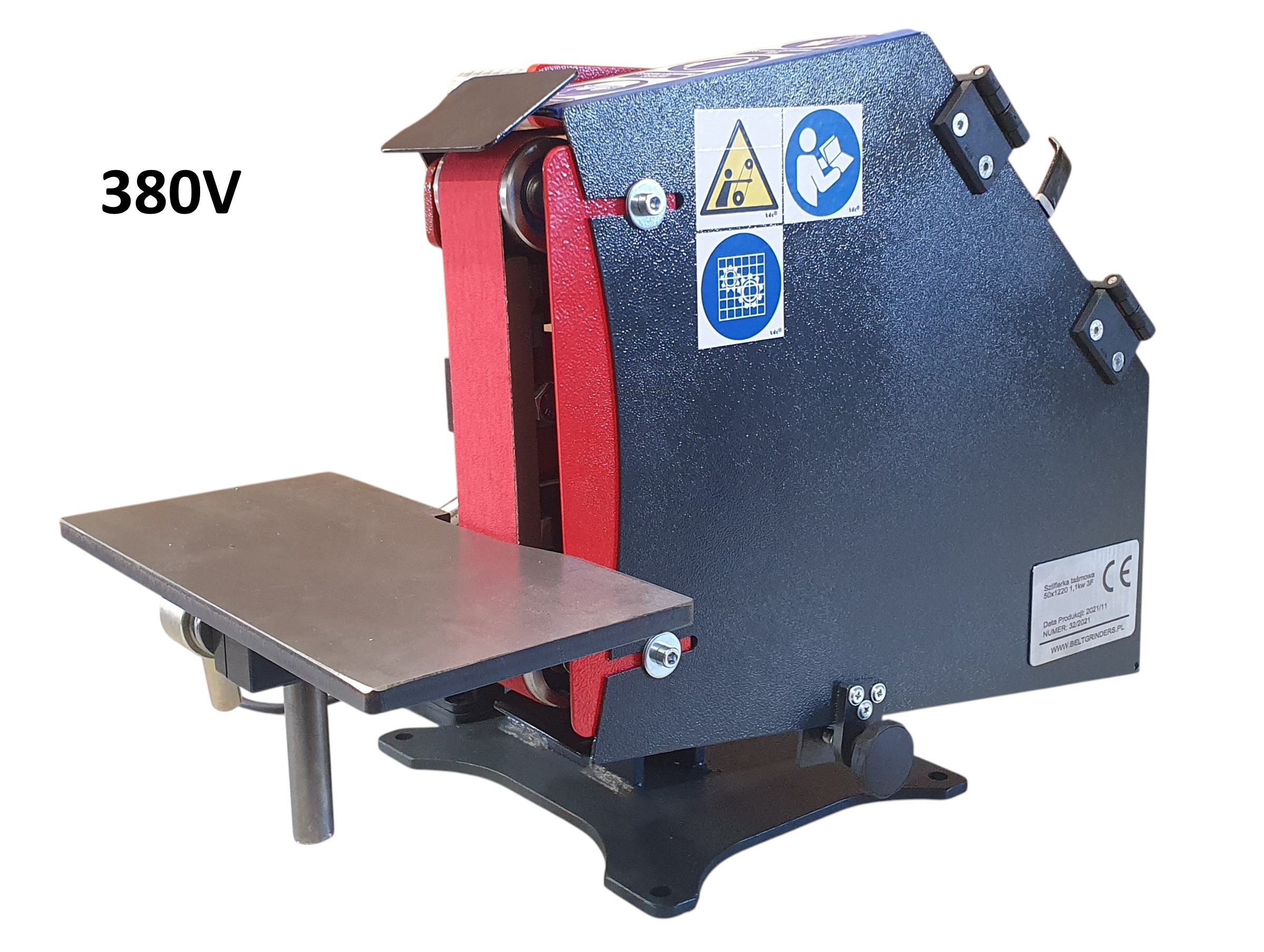

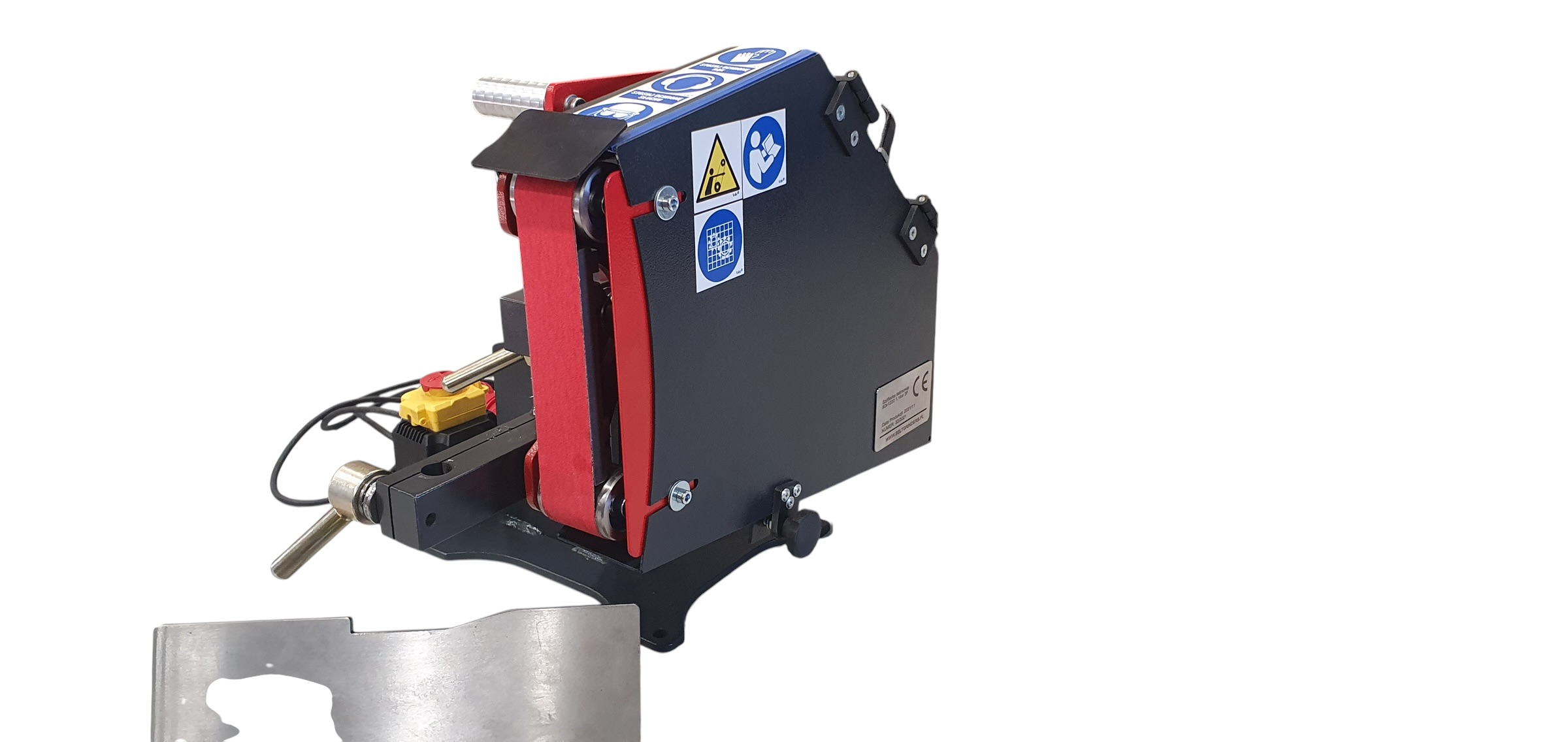

The grinder is equipped with a fully enclosed belt system, providing a significant safety advantage over open-frame designs. The enclosure minimizes the risk of accidental contact with moving components while helping contain sparks, grinding debris, and dust generated during operation.
In addition to improving operator safety, the enclosed construction increases the overall rigidity of the machine, resulting in smoother operation, reduced vibration, and improved grinding accuracy.

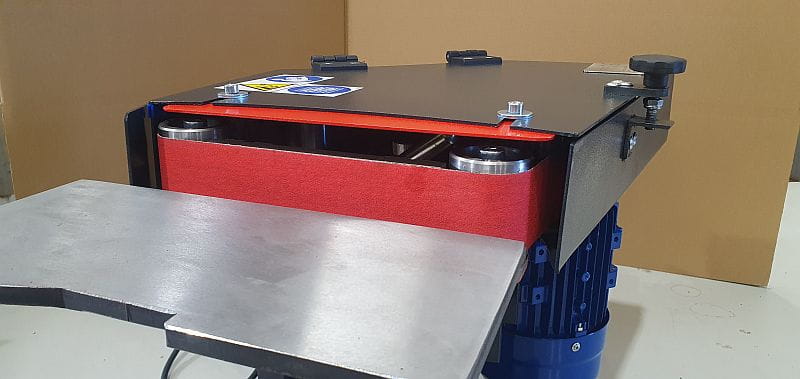

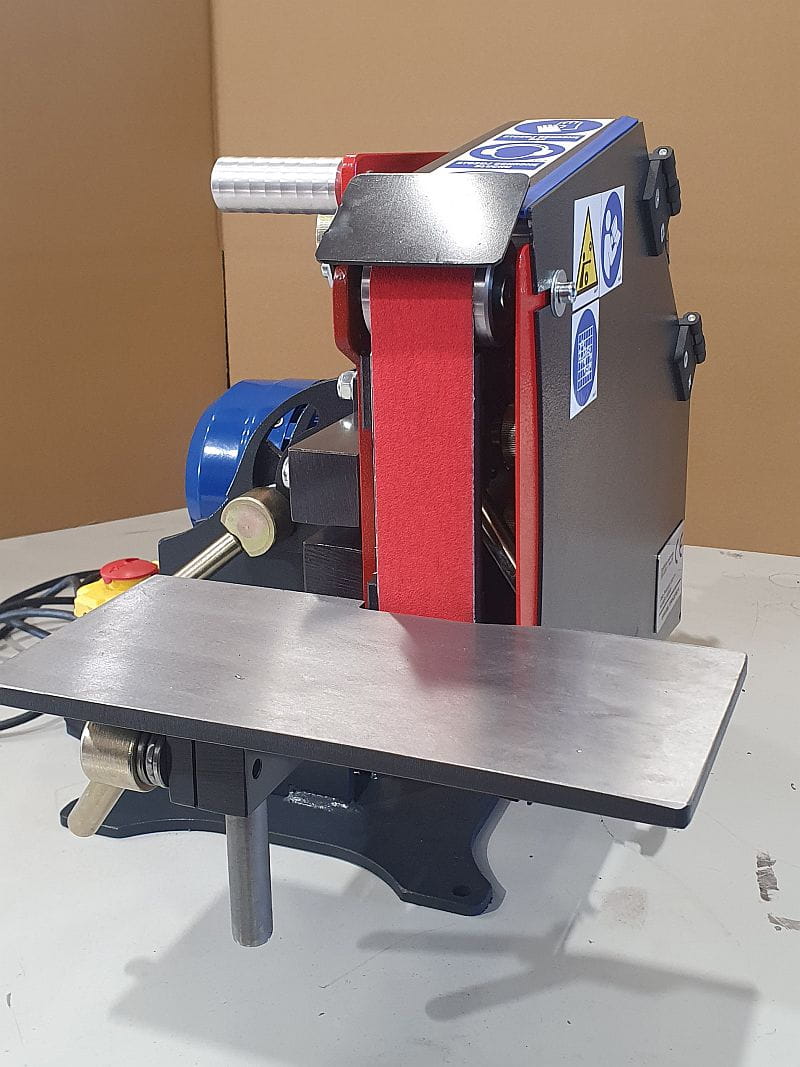

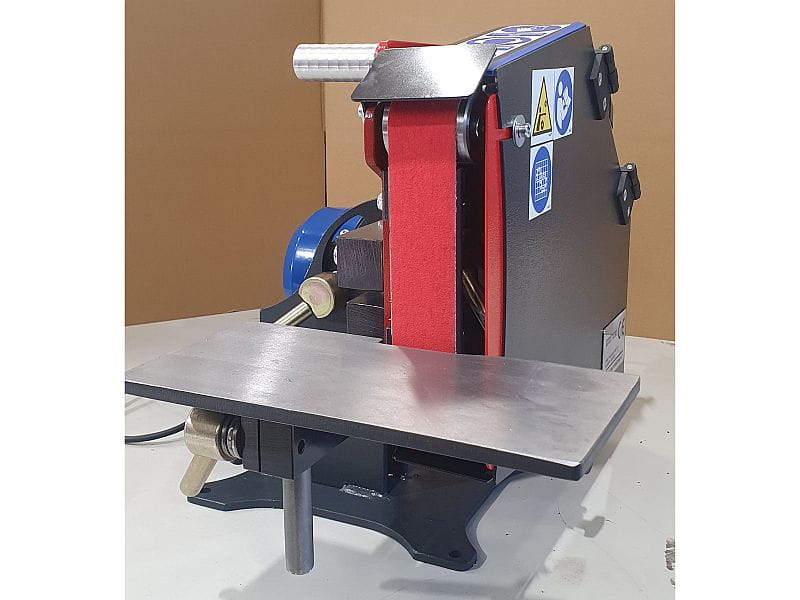

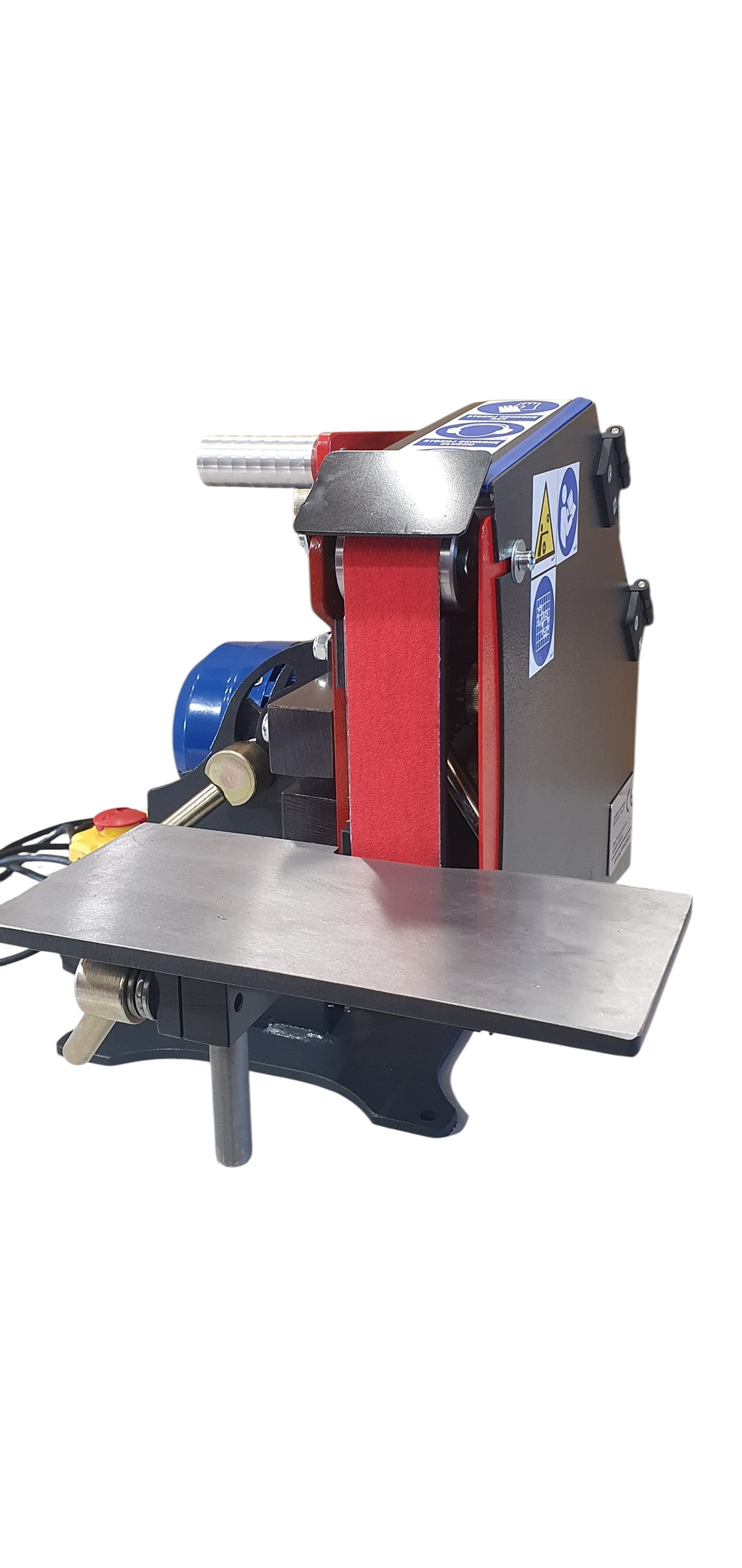

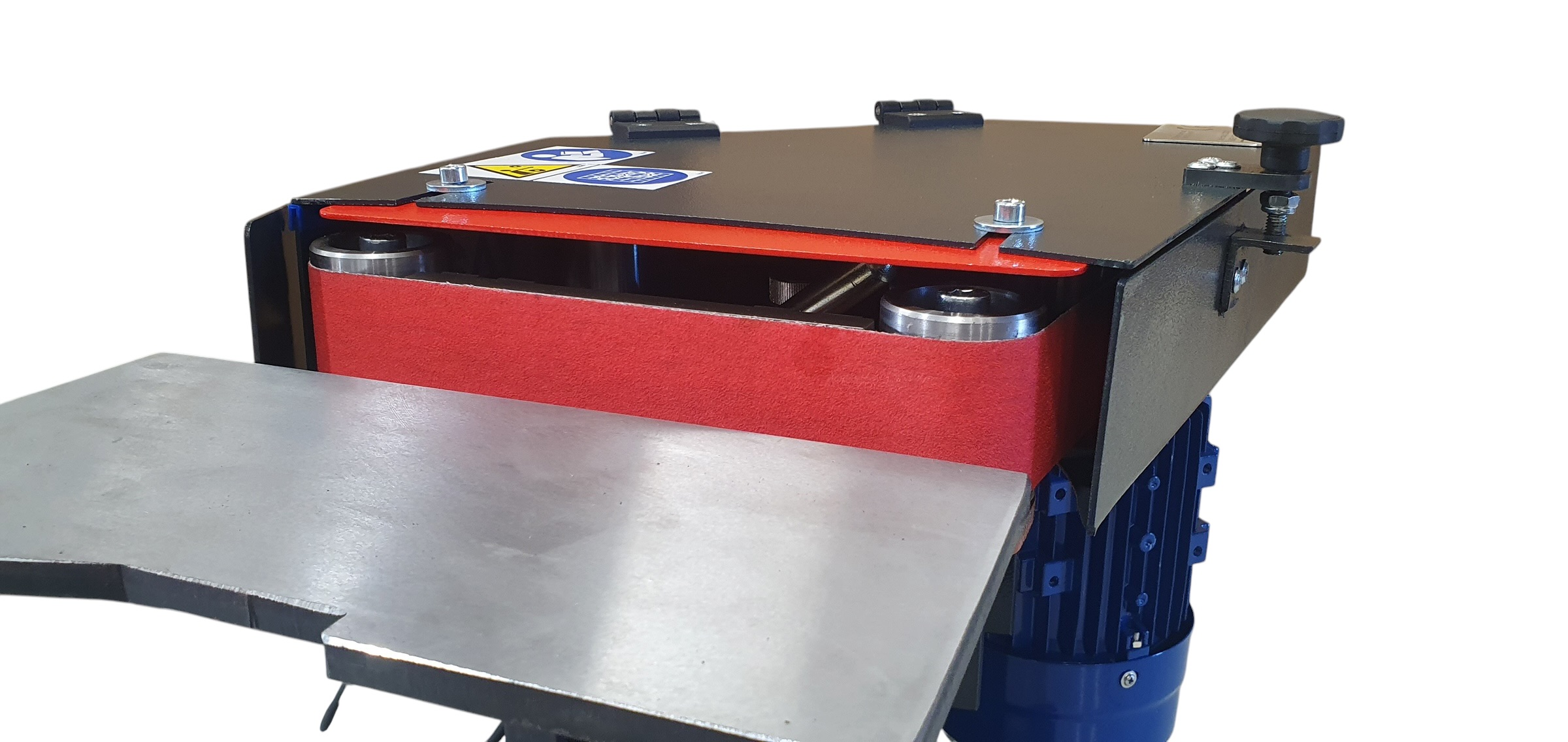

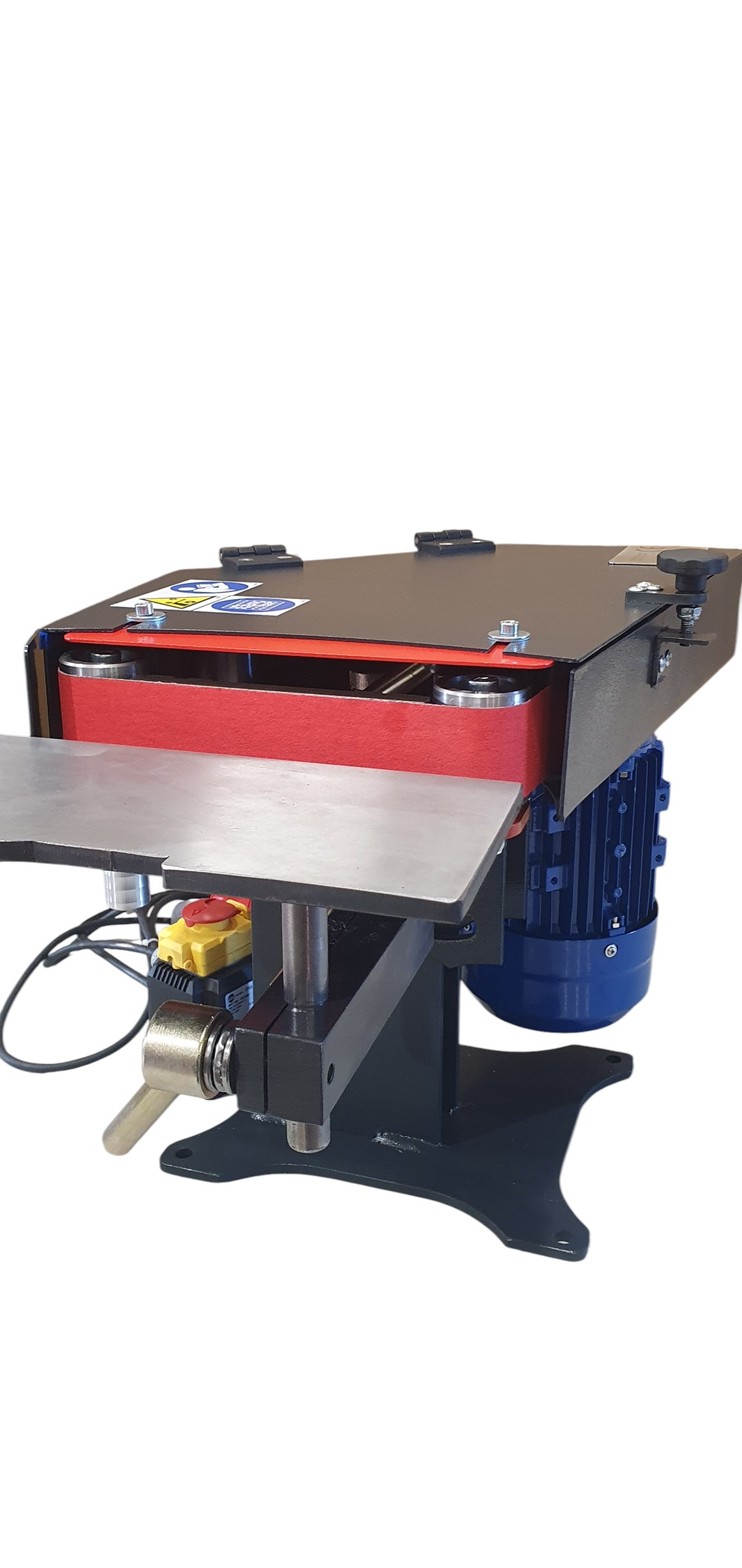

The machine can be operated in both vertical and horizontal positions, allowing users to adapt the setup to different grinding tasks and workpiece geometries.
Key Features
- 50 × 1220 mm abrasive belt
- Powerful 1.1 kW three-phase motor
- Vertical and horizontal operating positions

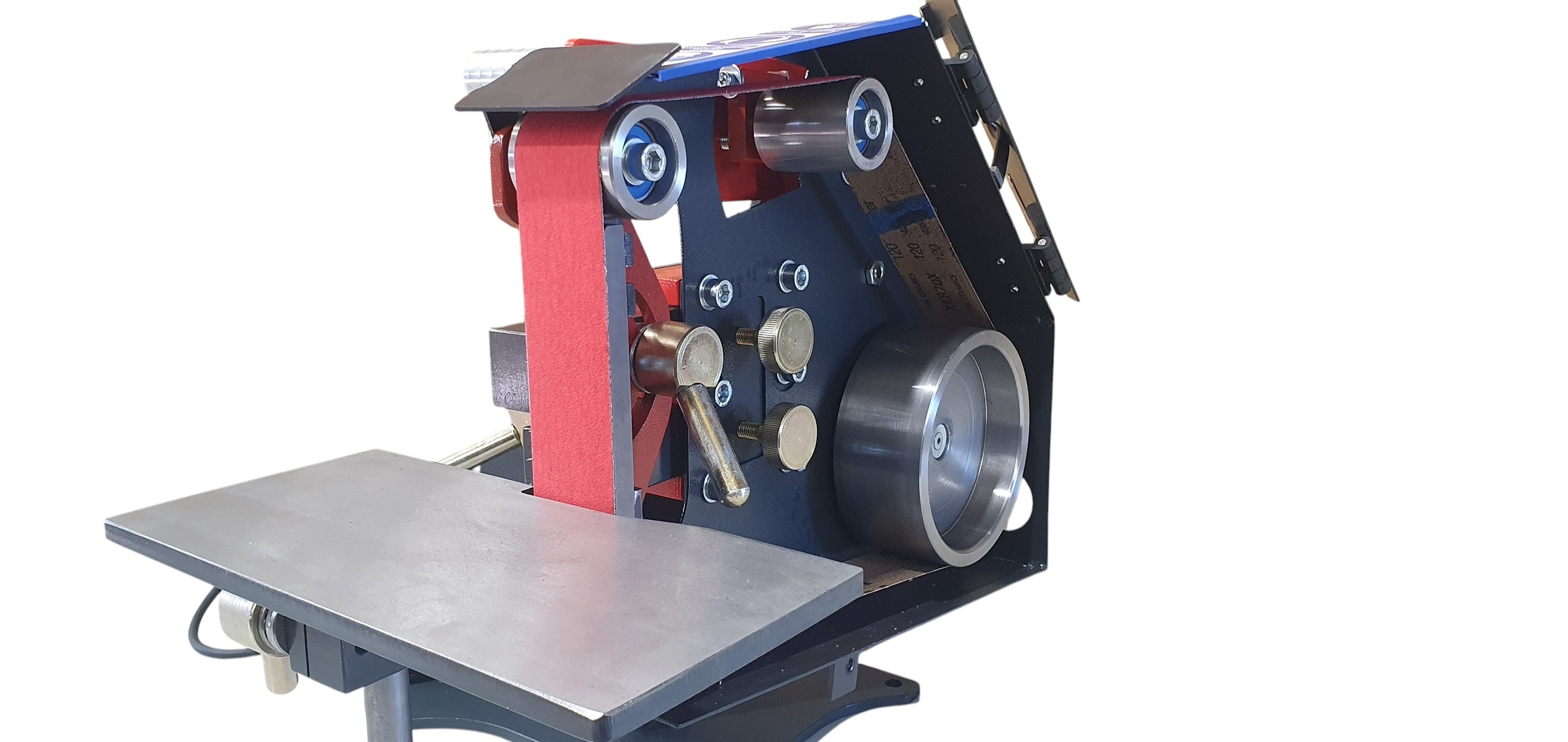

- Adjustable grinding support (platen) with angle adjustment
- Adjustable work table height
- Heavy-duty work table measuring 300 × 150 mm
- High belt speed of approximately 23.5 m/s
- Fully enclosed belt system for enhanced operator safety
- Durable powder-coated finish
- Compact and rigid construction
- CE marked
Variable Speed Control & VFD Compatibility
The installed three-phase motor is ideally suited for variable speed operation. The machine is fully compatible with frequency inverters (VFDs), including both standard 380–400 V three-phase powered drives and 230 V single-phase input drives with three-phase output.
This allows precise adjustment of belt speed to match different materials and applications, providing improved control, better surface finishes, and increased versatility in the workshop.
CE Compliance
The machine is supplied with CE marking, confirming compliance with applicable European Union machinery safety requirements and standards. Combined with its enclosed belt design and robust construction, this ensures safe and reliable operation in professional working environments.
Technical Specifications
| Specification | Value |
|---|---|
| Belt size | 50 × 1220 mm |
| Motor power | 1.1 kW |
| Motor type | Three-phase |
| Belt speed | Approx. 23.5 m/s |
| Work table dimensions | 300 × 150 mm |
| Machine dimensions (L × W × H) | 650 × 400 × 460 mm |
| Adjustable work table | Yes (up/down) |
| Adjustable platen angle | Yes |
| Vertical / horizontal operation | Yes |
| Belt enclosure | Full |
| Finish | Powder-coated |
| Certification | CE |
| Weight | 45 kg |
Machine Dimensions
- Length: 650 mm (65 cm)
- Width: 400 mm (40 cm)
- Height: 460 mm (46 cm)
Built for reliability, precision, and safety, this belt grinder is an excellent choice for professionals and enthusiasts seeking a compact, high-performance grinding solution with the added benefit of full VFD compatibility and CE-certified construction.
